PantryPal Developer Guide

Design and Implementation

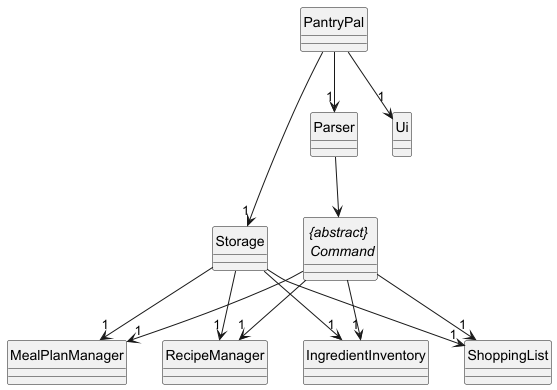

Class Diagram showing the overall structure of the application

drawing

Quick high-level overview of the classes in the application:

Main Components

PantryPal: is the main class that serves as the entry point for the application. It initializes the necessary components and starts the user interface.
Ui: handles the user interface of the application and provides methods for displaying messages
Parser: is responsible for parsing user input and instantiating the appropriate command class.
Storage: manages the persistence of data when the application exits. It handles the reading and writing of data to and from data.txt, ensuring that user data is saved and can be retrieved when the application is relaunched.
Command: encapsulates the logic and parameters associated with each command in the application. Each command is represented by a separate class, which inherits from a specific command type.

The command classes interact with the following components, each serving as an interface to a specific list of data:

IngredientInventory: manages the list of ingredients in the pantry, allowing users to add, remove, and modify ingredients.
ShoppingList: manages the list of items to be purchased, allowing users to add, remove, and view items.
RecipeManager: manages the list of recipes, allowing users to add, remove, and view recipes.
MealPlanManager manages the list of meal plans, allowing users to add, remove, and view meal plans.

Implementation of Command Classes

Overview

The Command classes are responsible for encapsulating the logic and parameters associated with each command in the application.

Design and Implementation

The Command classes are designed to be modular and expandable, allowing for easy addition of new commands and functionalities. The core components of the Command classes include:

Command Classes: Each command is represented by a separate class, which encapsulates the logic and parameters associated with that command. This design allows for clear separation of concerns and makes it easy to add new commands in the future.
Command Types: Each command inherits from a specific command type, which is used to identify the command’s functionality group. This allows for better organization and management of commands within the application.
Execute Method: Each command class implements an execute method, which contains the logic for performing the action associated with that command. This method is called when the parser returns the command object to the main program.

Class Diagram

drawing

Implementation of the Parser Feature

Overview

The Parser feature is a crucial component of the application, responsible for interpreting and processing user input. It serves as the bridge between the user interface and the underlying logic of the application, ensuring that commands are correctly understood and executed.

Design and Implementation

The Parser feature is designed to be modular and extensible, allowing for easy addition of new commands and functionalities. The core components of the Parser feature include:

Command Classes: Each command is represented by a separate class, which encapsulates the logic and parameters associated with that command. This design allows for clear separation of concerns and makes it easy to add new commands in the future.
Parser Class: The Parser class is responsible for parsing the user input and instantiating the appropriate command class. It uses a series of switch statements to determine the type of command based on the input string.
Command Execution: Once the command is parsed and instantiated, it is executed by calling the execute method on the command object. This method contains the logic for performing the action associated with the command.
Error Handling: The Parser feature includes error handling to manage invalid input and provide feedback to the user. If the input cannot be parsed or if the command is not recognized, an appropriate error message is displayed.

Sequence Diagram

The following sequence diagram illustrates the interaction between the user, the Parser, and the Command classes during the execution of a command:

drawing

Why It Is Implemented This Way

By using separate command classes, we can easily extend the functionality of the application without modifying the core parsing logic. By encapsulating the command logic within individual classes, we adhere to the Single Responsibility Principle, making the codebase easier to understand and maintain. —

Implementation of the Storage Feature

Overview

The Storage feature is responsible for managing the persistence of data when the application exits. It handles the reading and writing of data to and from data.txt, ensuring that user data is saved and can be retrieved when the application is relaunched

Design and Implementation

The Storage feature is designed to be modular and extensible, allowing for easy addition of new data types and functionalities. The core components of the Storage feature include:

Storage Class: The Storage class is responsible for managing the reading and writing of data to and from data.txt. It provides methods for loading data from the file and saving data back to the file.
Data Classes: The Storage feature interacts with various data classes, such as IngredientInventory, ShoppingList, RecipeManager, and PlanPresets. Each of these classes represents a specific type of data list and provides methods for manipulating that list.
File Handling: The Storage feature uses file handling techniques to read and write data to data.txt. It ensures that the data is formatted correctly and that any errors during file operations are handled gracefully.

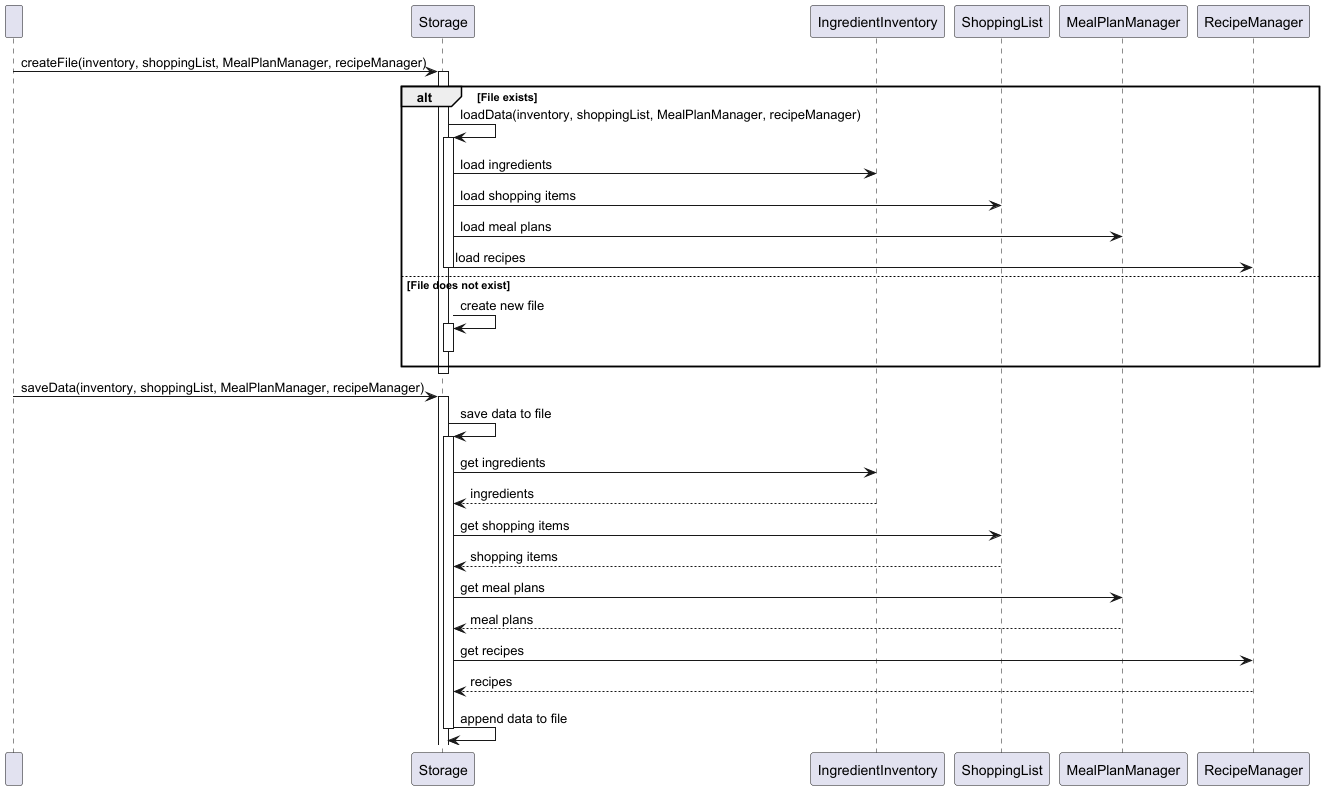

Sequence Diagram

The following sequence diagram illustrates the interaction between the Storage class and the other key lists in the application during the loading and saving of data: The key lists include: StockList, LowStockList, RecipeList, ShoppingList

drawing

Data Storage Format

The data is stored in a text file called data.txt in the following format:

[Shopping] <Ingredient> <Quantity> <Unit> <isPurchased>

[Stock] <Ingredient> <Quantity> <Unit> <Category>

[LowStock] <Ingredient> <Quantity>

[Recipe] <RecipeName>
[Ingredients] <Ingredient1> <Quantity1> <Unit1> <Category1> | ...
[Instructions] <Instruction1> | <Instruction2> | ...

[MealPlan] <MealPlanName>
[Breakfast] <Recipe Index>
[Lunch] <Recipe Index>
[Dinner] <Recipe Index>

[WeeklyPlan]
[MONDAY] <Plan Index>
[TUESDAY] <Plan Index>
[WEDNESDAY] <Plan Index>
[THURSDAY] <Plan Index>
[FRIDAY] <Plan Index>
[SATURDAY] <Plan Index>
[SUNDAY] <Plan Index>

Implementation of the Plan, MealPlanManager and Viewing features

Meal Plan Feature

Overview

The MealPlan feature is the core feature of the PantryPal application, and is responsible for the cohesion of the Recipe, ShoppingList and IngredientInventory features. A Plan instance encapsulates the planRecipes and planName attributes, which are containers for Recipe and the identifier used for searching respectively.

Design and Implementation

The MealPlan feature is designed for quick interfacing and adaptation of a user’s tangible plans.

MealPlan Class: Represents a meal plan instance created by the user with attributes for an identifying name and used recipes. It includes the methods to add and remove certain recipes from the plan.

Core Functionalities

Add Recipe to Plan: allows the user to add a particular created recipe into a meal plan, through specification by the user on whether it is for breakfast, lunch or dinner.
Remove Recipe from Plan: allows the user to completely remove a selected recipe from a meal plan.

MealPlanManager Feature

The MealPlanManager feature holds a collection of Plan objects for, quick re-iterations of a same meal plan as well as the tangible representation of the user’s weekly schedule in weeklyPlans. It encapsulates planList, an ArrayList of Plan objects that have been created by the user, and draws from this to substantiate a weeklyPlan instance for use.

Design and Implementation

The MealPlanManager feature is designed for convenience, allowing the user to re-use a same plan for purposes of a diet, without having to painstakingly enter the details for every duplicate meal plan they are planning to add to their viewing schedule.

MealPlanManager Class: Represents an individual set of meal plans created by the user that contains the collection of plans.
Find Plan feature: Allows the user to locate a plan with a particular name through matching of string contents.
Execute Plan feature: Allows the user to mark a plan as completed and reduce quantities of ingredients in Inventory as necessary

Core Functionalities

Add Plan: Instantiates a new Meal Plan instance with a name optionally keyed by the user
Remove Plan: Removes a plan from the currently created preset
Add recipe to plan: Facilitates the procedure of adding a recipe to the indicated meal plan as decided by the user
Remove recipe from plan: Facilitates the procedure of removing a recipe from the indicated meal plan as decided by the user
Remove Plan Remove the current selected plan from dailySchedule
Execute Plan Marks the plan as done and reduces the stock of ingredients used by the plan. Does not execute if there is a lack in count for any ingredient, and will prompt the user on all missing ingredients and whether they would want to add them to shopping list
View Plan list Shows a summarized view of each Plan object
View Plan Shows a detailed view of each Plan object in planList
View Day plan Shows a detailed view of a day’s Plan object
View Week plans Shows a summarised view of each day’s plans in weeklyPlans
Find Plan

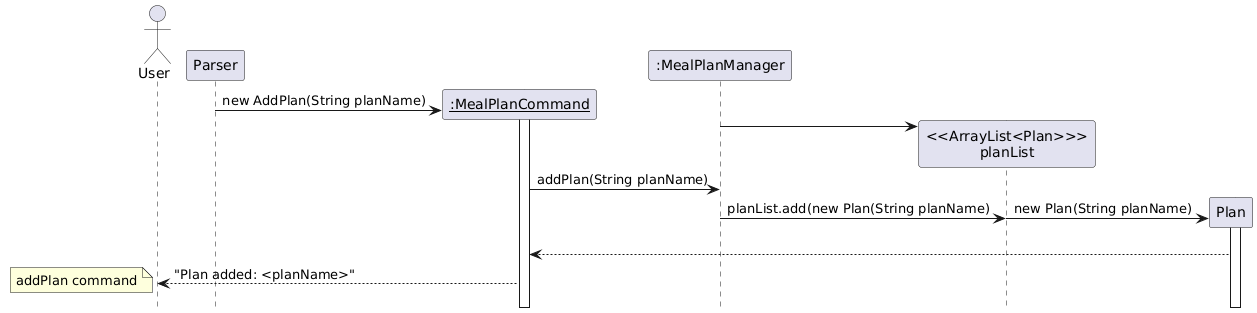

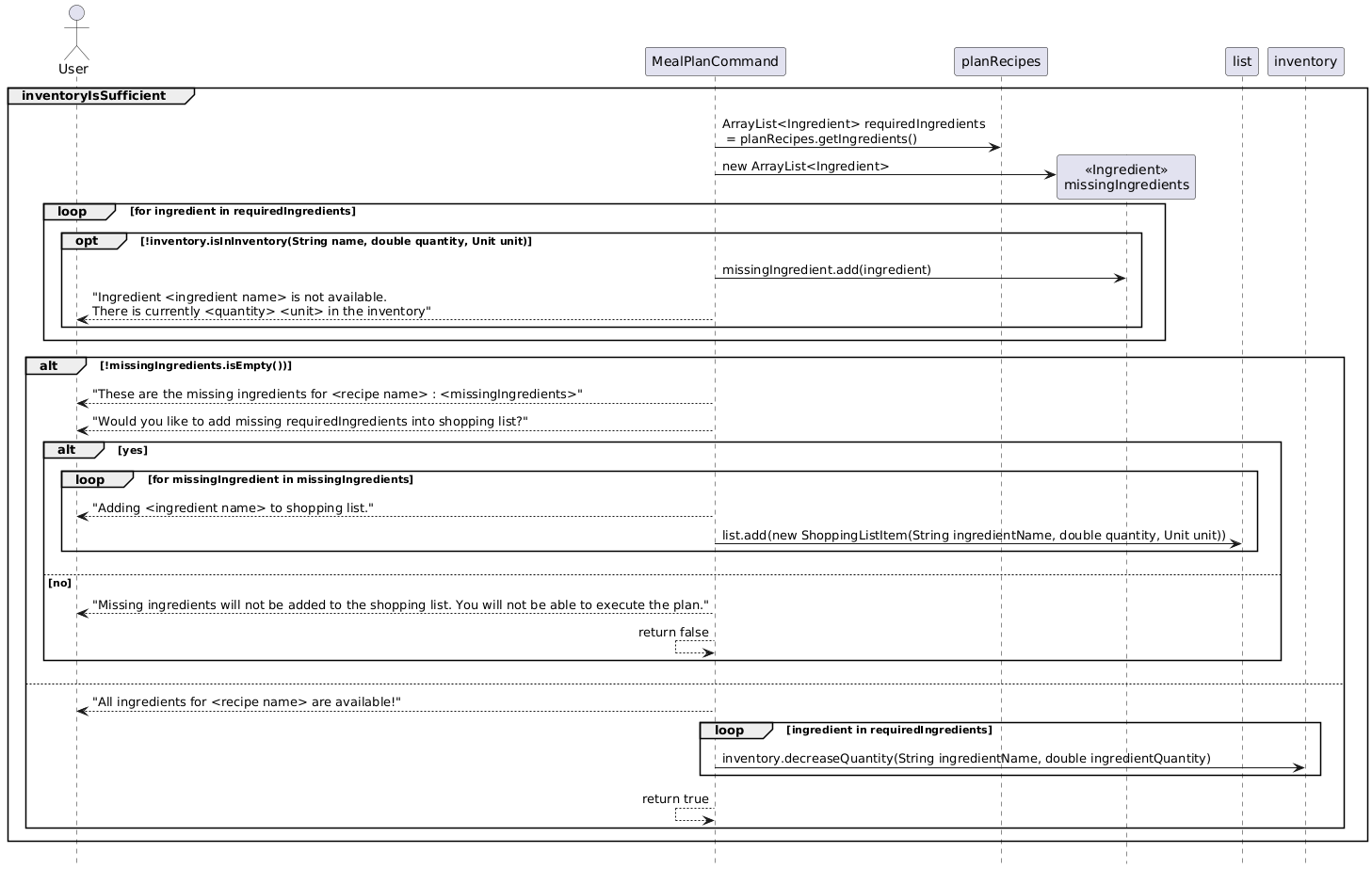

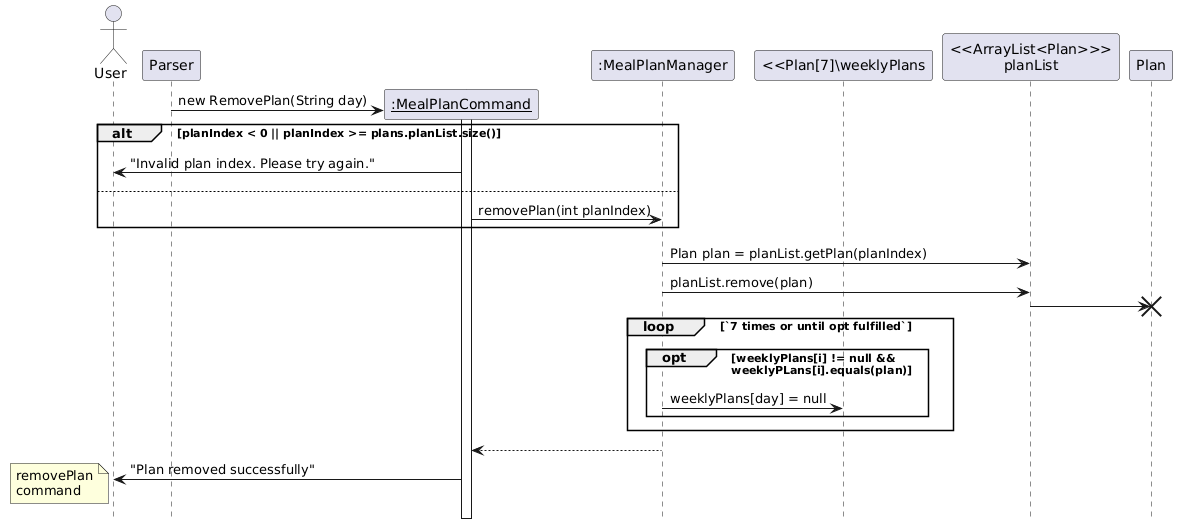

Sequence Diagram

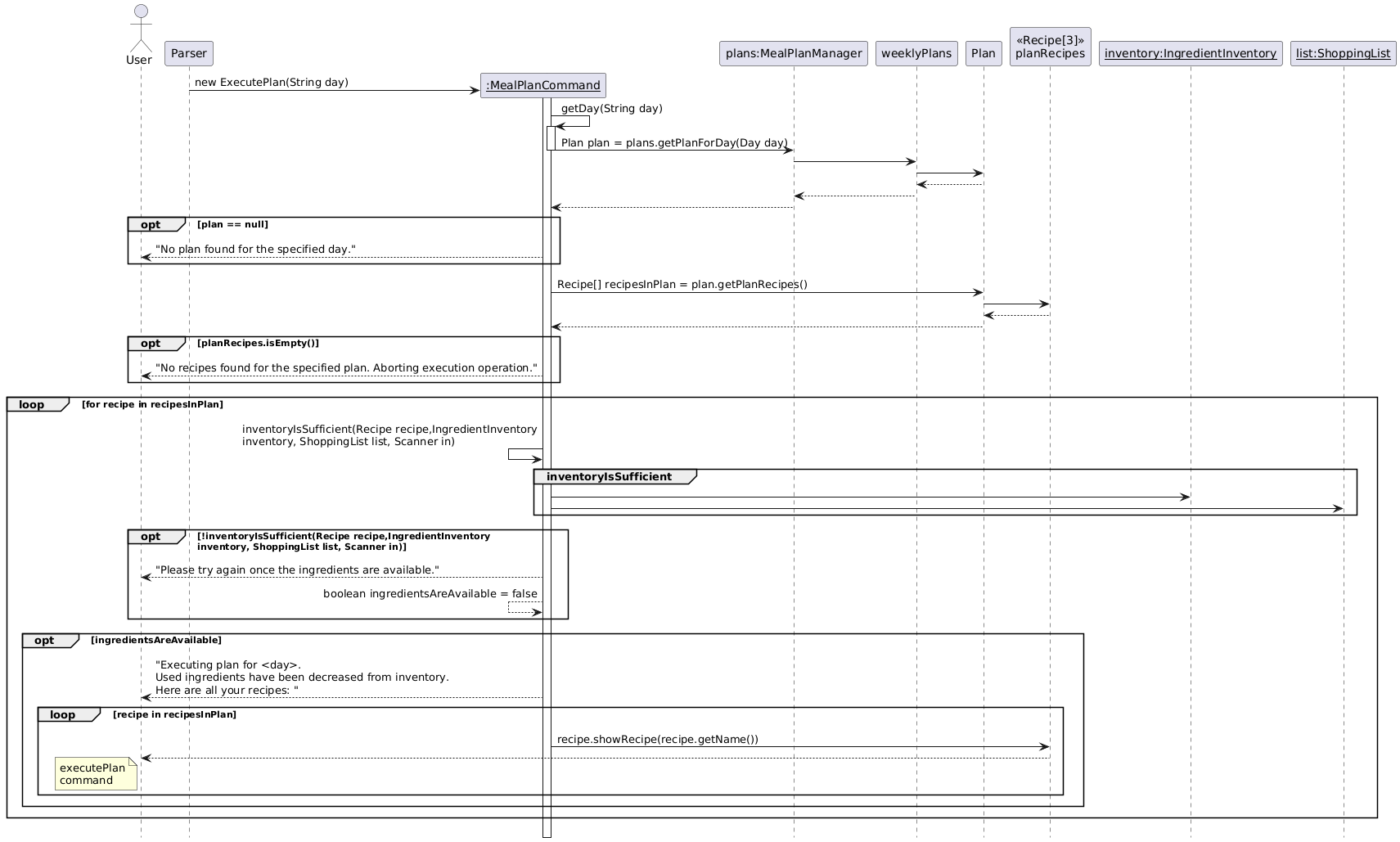

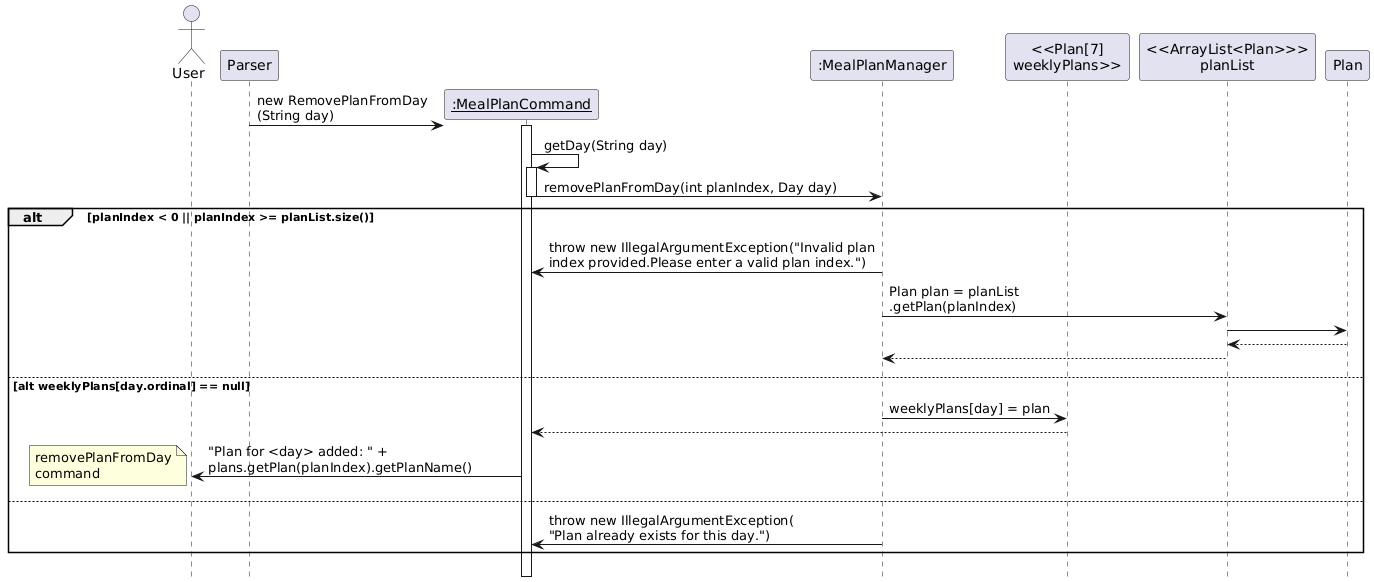

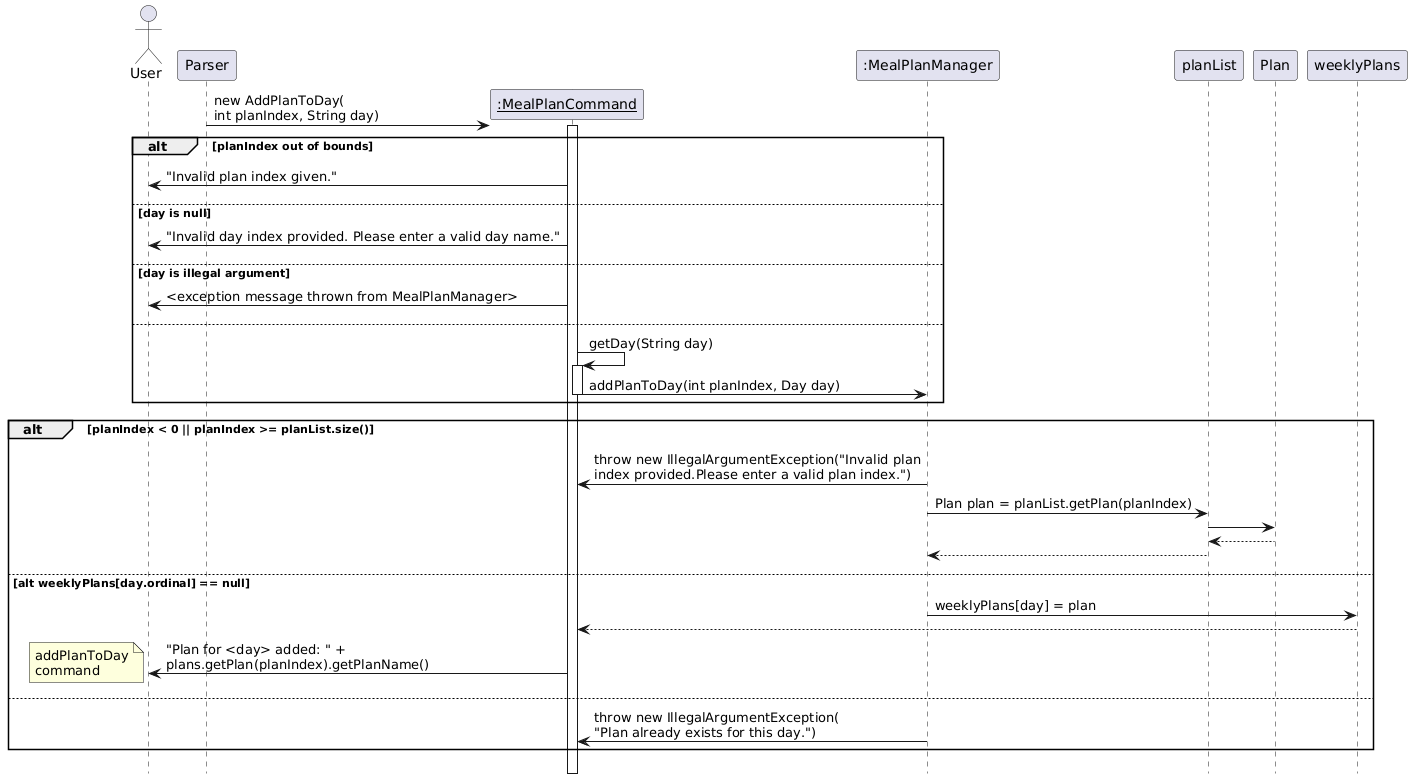

The following sequence diagram illustrates the interactions between the user, MealPlanManager, each relevant Plan and what they will present

drawing Command List for MealPlanManager drawing AddPlan Command Sequence Diagram drawing AddPlanToDay Command Sequence Diagram drawing RemovePlan Command Sequence Diagram drawing RemovePlanFromDay Command Sequence Diagram drawing ExecutePlan Top-Level Command Sequence Diagram drawing ExecutePlan Lower-Level Command Sequence Diagram

Implementation of the Ingredient and Ingredient Inventory Features

Ingredient Feature

Overview

The Ingredient feature represents individual ingredients in the system. Each ingredient instance encapsulates essential attributes such as name, quantity, and unit. This modular design ensures that ingredients can be easily created, modified, and retrieved when needed.

Design and Implementation

The Ingredient feature is designed for flexibility and accuracy, ensuring seamless interaction with other components like the Ingredient Inventory, Recipe, and Recipe Manager. The core components of the Ingredient feature include:

Ingredient Class: Represents an individual ingredient with attributes for name, quantity, and unit. It includes methods to get and set these attributes, ensuring proper data encapsulation.
Unit Feature: Standardizes measurement units for ingredients, ensuring consistency.

Core Functionalities

Creating Ingredient: Allows creating ingredients with specified attributes.
Updating Ingredient: Provides methods to modify an ingredient’s name, quantity, and unit.
Unit Management: Ensures valid unit selection and provides functionality for unit conversion.

Ingredient Inventory Feature

Overview

The Ingredient Inventory feature is responsible for managing a collection of ingredients, tracking their quantities, and ensuring users can monitor their stock. This feature enables users to add, update, and remove ingredients while supporting low-stock alerts.

Design and Implementation

The Ingredient Inventory feature is modular and extensible, allowing for seamless integration with features like Recipe Management and Shopping Lists. The core components of the Ingredient Inventory feature include:

Ingredient Inventory Class: Manages the collection of ingredients, allowing users to add, edit, and delete items.
Low-Stock Alert System: Enables users to set and receive low-stock alerts, notifying them when ingredients fall below a set threshold.
Integration with Ingredient Feature: Uses the Ingredient class to ensure consistency and modularity in ingredient representation.
Unit Conversion System: Enables users to convert ingredient quantities between different units (e.g. kg to g) for consistency in recipes and inventory tracking.
Category Management: Allows ingredients to be categorized (e.g. Dairy, Condiments, Spices) for easier organization and filtering.

Core Functionalities

Adding and Managing Ingredients: Users can add new ingredients with a name, quantity, unit, and category while ensuring valid input through validation checks.
Updating Ingredient Quantities: The feature allows increasing or decreasing ingredient quantities.
Deleting Ingredients: Users can remove ingredients from the inventory, ensuring accurate stock representation.
Low-Stock Alerts: The system supports configurable alerts to notify users when ingredients are running low.
Unit Conversion: Users can add and convert ingredient quantities between different units using predefined conversion factors to maintain consistency.
Categorizing Ingredients: Users can assign categories to ingredients to improve organization and facilitate searching.

Sequence Diagram

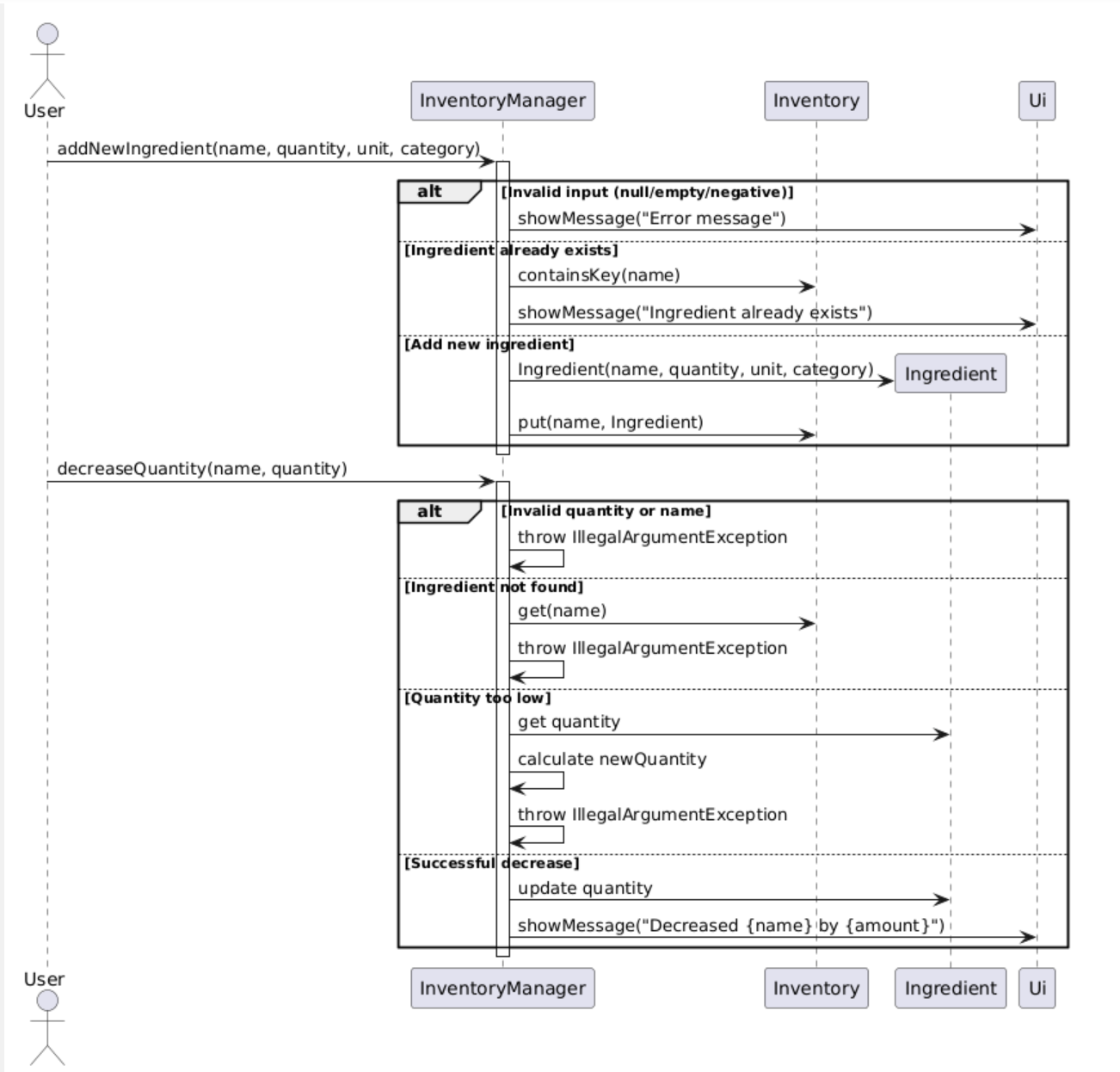

The following sequence diagram illustrates the interaction between the user, the Ingredient Inventory, and the Ingredient feature during ingredient management:

drawing

The sequence diagram is generalized to include only the decreaseQuantity method, as it follows the same flow as the increaseQuantity method. Both operations involve similar steps—validating input, updating the inventory, and displaying a message—so only one method is shown to avoid redundancy.

drawing

Why It Is Implemented This Way

The Ingredient and Ingredient Inventory features follow a modular design to ensure flexibility, scalability, and maintainability. The Single Responsibility Principle is adhered to, with the Ingredient class managing individual ingredient attributes (name, quantity, unit) and the Ingredient Inventory class handling the collection of ingredients, conversions, and stock alerts. The addition of unit conversion ensures consistency across different ingredient measurements, making it easier to track inventory. Categorization improves usability by allowing users to group and filter ingredients based on type.

Implementation of the Shopping List Item and Shopping List Features

Shopping List Item Feature

Overview

The Shopping List Item feature represents individual items that need to be purchased. Each shopping list item instance encapsulates essential attributes such as ingredient name, quantity needed, and unit of measurement. This modular design ensures that shopping items can be easily created, modified, and tracked.

Design and Implementation

The Shopping List Item feature is designed for accuracy and consistency, ensuring proper integration with both the Shopping List and Ingredient Inventory features. The core components include:

ShoppingListItem Class: Represents an individual shopping item with attributes for ingredient name, quantity needed, and unit. It includes methods to get and set these attributes, ensuring proper data encapsulation.
Unit Consistency: Maintains consistency with the Unit feature used in the Ingredient class.

Core Functionalities

Creating Shopping Items: Allows creating shopping items with specified attributes.
Updating Shopping Items: Provides methods to modify an item’s quantity and unit.
Unit Management: Ensures valid unit selection and maintains consistency with ingredient units.

Shopping List Feature

Overview

The Shopping List feature is responsible for managing a collection of items that need to be purchased. It works in conjunction with the Ingredient Inventory feature to help users track items that are running low or need to be restocked.

Design and Implementation

The Shopping List feature is modular and extensible, allowing for seamless integration with the Ingredient Inventory and Recipe Management features. The core components include:

ShoppingList Class: Manages the collection of shopping items, allowing users to add, update, and delete items.
Automatic Item Generation: Enables automatic addition of items based on low stock levels in the inventory.
Integration with ShoppingListItem: Uses the ShoppingListItem class to ensure consistency and modularity in item representation.

Core Functionalities

Adding Items: Users can manually add items to the shopping list or automatically add items based on low stock alerts.
Updating Items: Allows modification of quantities or removal of items from the shopping list.
Clearing Items: Provides functionality to clear the shopping list after items have been purchased.
Viewing Items: Displays a formatted list of items to be purchased, including quantities and units.

Sequence Diagram

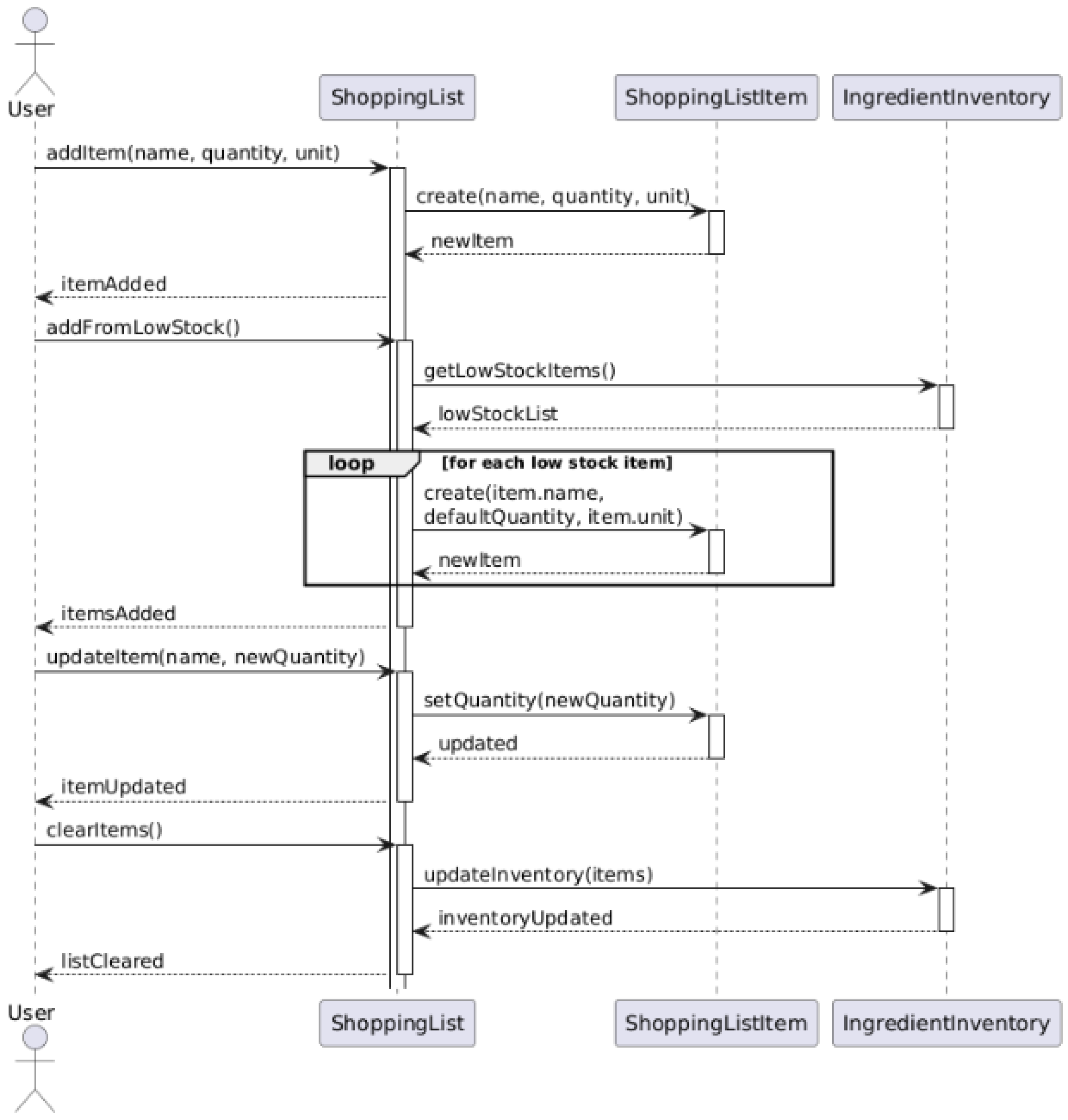

The following sequence diagram illustrates the interaction between the user, Shopping List, Shopping List Item, and Ingredient Inventory when managing shopping items:

drawing

Why It Is Implemented This Way

The Shopping List Item and Shopping List features follow a modular design to ensure flexibility, scalability, and maintainability. The Single Responsibility Principle is adhered to, with the ShoppingListItem class managing individual item attributes and the ShoppingList class handling the collection of items. This clear separation makes the system easy to understand, maintain, and modify without affecting other components.

Implementation of the Instruction, Recipe and Recipe Management Features

Instruction Feature

Overview

The Instruction Feature represents all the instructions in the Recipe. Each instruction instance encapsulates essential attributes such as step number and instruction content. This modular design ensures that instructions and instruction list can be easily created, modified, and retrieved when needed.

Design and Implementation

The Instruction feature is designed for flexibility and accuracy, ensuring seamless interaction with other components like the Recipe and Recipe Manager. The core components of the Ingredient feature include:

Instruction Class: Represents an instruction inside Recipe, with attributes for step number and instruction content. It includes methods to get and set these attributes, ensuring proper data encapsulation.

Core Functionalities

Creating Instruction: Allows creating instructions with specified attributes. -Updating Instruction: Provides methods to modify an instruction’s step number or content. -Retrieving Instruction: Provides methods to return instruction’s step number or content for other uses.

Recipe Feature

The Recipe feature represents individual recipes in the system. Each recipe instance encapsulates essential attributes such as name, instructions, and ingredients. This modular design ensures that recipes can be easily created, modified, and retrieved when needed.

Design and Implementation

The Recipe feature is designed for flexibility, accuracy and consistency, ensuring proper integration with the Recipe Manager. The core componenets of Recipe feature include:

Recipe Class: Represents an individual recipe with attributes for name, instructions, and ingredients. It includes methods to get and set these attributes, ensuring proper data encapsulation.
Integration with Ingredient Class: Uses the Ingredient class to ensure consistency, accuracy and modularity in the ingredient representation
Integration with Instruction Class: Uses the Instruction class to ensure consistency, accuracy and modularity in the instruction representation

Core Functionalities

Adding and Managing Recipe Ingredients: Users can add new ingredients with a name, quantity, and unit while ensuring valid input through validation checks.
Adding and Managing Recipe Instructions: Users can add new instructions with a step number and their content.
Deleting Ingredients: Users can remove ingredients from the recipe, ensuring accurate recipe information.
Deleting Instructions: Users can remove instructions from the recipe, ensuring accurate recipe information.

Recipe Management Feature

Overview

The Recipe Management feature is responsible for managing a collection of recipes, tracking their name, ingredients and instructions. This feature enables users to add recipes, update recipe’s ingredients and instructions, and remove recipes.

Design and Implementation

The Recipe Management feature is modular and extensible, as well as maintaining accuracy, allowing it to be used seamlessly by other features. The core componenets of the Recipe Management feature include:

Recipe Manager Class: Manages the collection of recipes, allowing users to add, remove, or update the recipe’s content.
Edit Ingredient: Edits the chosen recipe’s ingredient’s name, quantity, or unit, ensuring the recipe’s accuracy. This feature has been implemented in the back end and will be open to the user in a future release.
Edit Instruction: Edits the chosen recipe’s instruction step number or content, ensuring the recipe’s accuracy. This feature has been implemented in the back end and will be open to the user in a future release.

Sequence Diagram

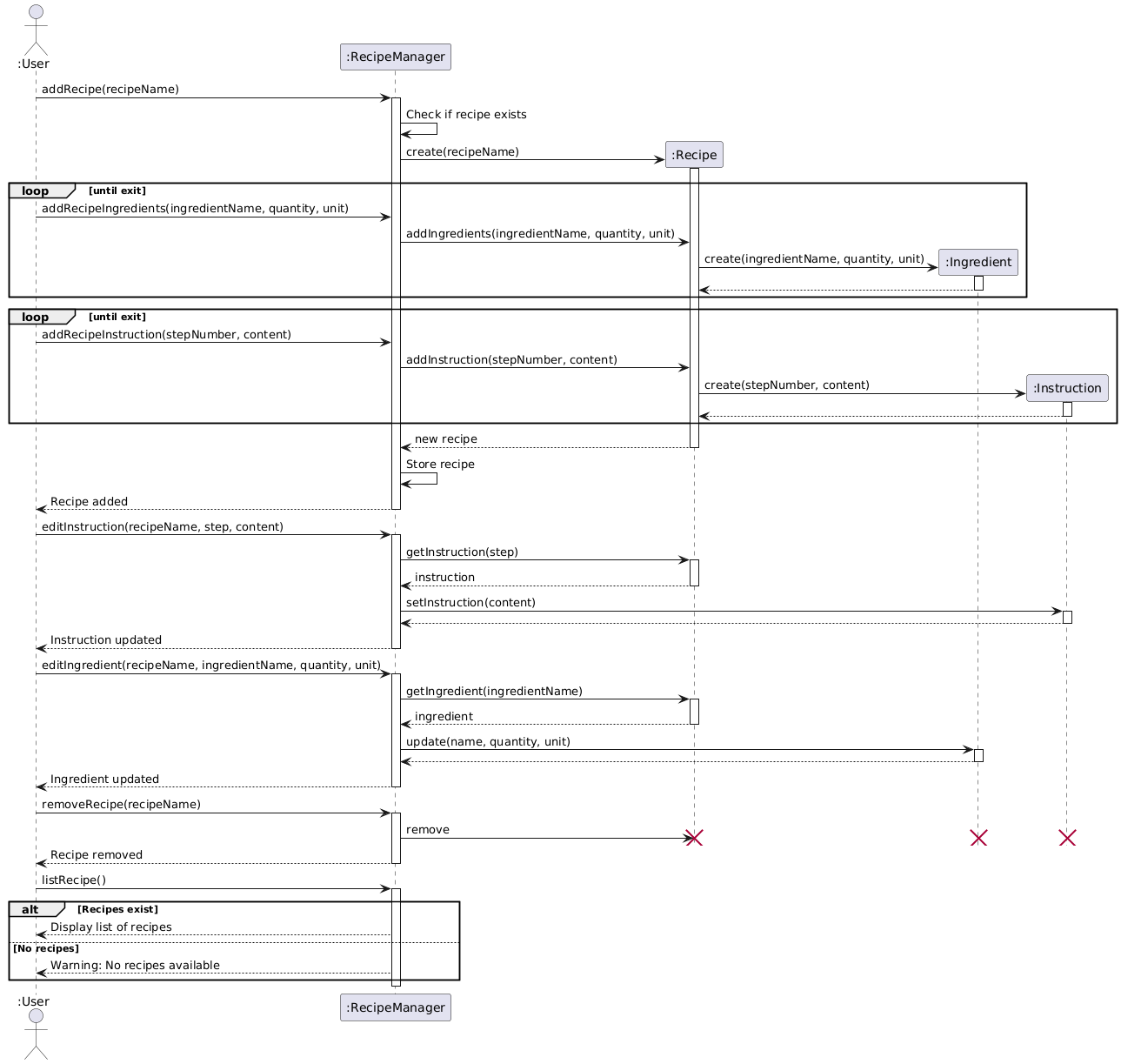

The following sequence diagram illustrates the interaction between the user, the Recipe Manager, the Recipe, the Ingredient, and the Instruction feature during recipe management:

drawing

Why It Is Implemented This Way

The Instruction, Recipe, and Recipe Management features follow a modular design to ensure it is easy to be maintained or modified when necessary. The Single Responsibility Principle is adhered to, with Instruction manages only the recipe instructions, while Recipe acts as collection of Instruction and Ingredient, and Recipe Management acts as collection of Instruction only. By separating into smaller classes, it helps the developer understand, maintain without heavy coupling with other components.

Appendix: Requirements

Product scope

Target user profile:

University students and busy individuals who want to simplify their meal planning, grocery shopping, and inventory management.
Can type fast
Prefer a command-line interface (CLI) over a graphical user interface (GUI)
prefers typing to mouse navigation
Prefer a practical and efficient way to manage their meals

Value proposition

PantryPal addresses the common challenges faced by university students and busy individuals when it comes to meal planning, grocery shopping, and inventory management by providing an all in one solution that simplifies these tasks.

User Stories

Version	As a …	I want to …	So that I can …
v1.0	new user	see usage instructions	refer to them when I forget how to use the application
v1.0	user	create a new ingredient	keep track of items I’ve added to my pantry
v1.0	user	update an ingredient’s quantity	reflect changes when I buy or use ingredients
v1.0	user	rename an ingredient	correct mistakes or reflect updated naming
v1.0	user	view details of an ingredient	know exactly how much I have and what type it is
v1.0	user	delete an ingredient	remove unused or expired ingredients from my inventory
v1.0	user	set a low stock threshold for ingredients	receive alerts when I need to restock
v1.0	user	view all low stock items	quickly identify what needs to be replenished
v1.0	user	find out if an ingredient is in stock	check availability before starting a recipe
v1.0	budget-conscious student	auto-generate a shopping list based my current stock and planned recipes	purchase only missing ingredients
v1.0	busy student	manually add items to my shopping list	quickly include additional ingredients I want to have more
v1.0	busy student	manually remove items from my shopping list	quickly remove additional ingredients I don’t want have so much
v1.0	meticulous planner	view my shopping list with clearly numbered items	easily reference and manage items for later editing or removal
v1.0	organized shopper	edit an existing shopping list item by its index	update integredients details if my shopping needs change
v1.0	user	add a recipe into a list	save the recipe to be used later on
v1.0	user	view all the recipe I saved	choose a recipe to follow
v1.0	user	remove recipe easily	avoid cramping my recipe list with rarely-used recipes
v2.0	user	change an ingredient’s unit	work with units I prefer or understand better
v2.0	user	view ingredients by category	organize or filter ingredients for easier navigation
v2.0	user	convert the unit of an ingredient	standardize or switch between measurement systems (e.g. g to kg)
v2.0	cost-conscious student	mark items on my shopping list as purchased	track which items I have bought and avoid re-purchasing them
v2.0	user	consolidate and use all the information I have entered	have a more convenient time planning out my weeks

Non-Functional Requirements

PantryPal should work on any mainstream operating system (Windows, macOS, Linux) with Java 17 or above installed.
Users with average typing speed should be able to complete most tasks more efficiently using commands than mouse navigation.
The application should remain responsive when managing a moderately large number of ingredients typical of home kitchens.
All data should persist automatically across sessions without requiring manual saving.

Glossary

glossary item - Definition
CLI - Command Line Interface
GUI - Graphical User Interface
Mainstream OS - Windows, Linux, Unix, MacOS
SRP - Single Responsibility Principle

Appendix: Instructions for manual testing

Note: The following instructions serve as a basic guide for testers to validate the functionality of the program. Testers should go beyond these steps and conduct further exploratory testing.

1. Start Application

Follow the instructions in the Quick Start section of the PantryPal User Guide to set up the application.
Expected: A welcome message along with a prompt for user input, inviting you to begin managing your pantry, recipes, and grocery list.

2. Test Cases

2.1 Initial State

Test case: help
- Steps: Call help method when starting the application.
- Expected: The message containing every commands available in the application is displayed.
Test case: viewStock
- Steps: Call viewStock method when the inventory is empty.
- Expected: The message Inventory is empty. should be displayed.
Test case: viewLowStock
- Steps: Call viewLowStock when no ingredients are set with low stock alerts.
- Expected: The message No low stock ingredients. should be displayed.
Test case: viewRecipeList
- Steps: Call viewRecipeList when there are no recipes in the recipe list.
- Expected: The message There are no recipes at the moment. You can add via addRecipe should be displayed.
Test case: viewShoppingList
- Steps: Call viewShoppingList when there is no items in the list.
- Expected: The message Shopping list is empty should be displayed.
Test case: viewPlanList
- Steps: Call viewPlanList when there is no plans.
- Expected: The message No plans available should be displayed.

2.2 Add New Ingredient

Test case: addNewIngredient
- Steps: Add a new ingredient to the inventory: addNewIngredient("Sugar", 5, Unit.GRAM, Category.CONDIMENTS).
- Expected: The ingredient Sugar with quantity 5 in grams and the CONDIMENTS category should be added to the inventory.
Test case: addNewIngredient with invalid data
- Steps: Add a new ingredient with invalid data, e.g., addNewIngredient("", 5, Unit.GRAM, Category.CONDIMENTS) (empty name).
- Expected: The method should throw an assertion error indicating that the ingredient name cannot be null or empty.
Test case: addNewIngredient with negative quantity
- Steps: Add an ingredient with a negative quantity, e.g., addNewIngredient("Salt", -3, Unit.GRAM, Category.CONDIMENTS).
- Expected: The method should throw an assertion error indicating that the quantity must be positive.

2.3 Increase Ingredient Quantity

Test case: increaseQuantity
- Steps: Increase the quantity of an existing ingredient: increaseQuantity("Sugar", 3).
- Expected: The quantity of Sugar should be increased by 3, making the new quantity 8.
Test case: increaseQuantity for non-existent ingredient
- Steps: Try increasing the quantity of a non-existent ingredient: increaseQuantity("Flour", 5).
- Expected: The message Ingredient not found should be displayed.

2.4 Decrease Ingredient Quantity

Test case: decreaseQuantity
- Steps: Decrease the quantity of an existing ingredient: decreaseQuantity("Sugar", 2).
- Expected: The quantity of Sugar should be decreased by 2, making the new quantity 6.
Test case: decreaseQuantity for insufficient quantity
- Steps: Try decreasing the quantity beyond available stock: decreaseQuantity("Sugar", 10).
- Expected: The message Not enough Sugar in stock. should be displayed.
Test case: decreaseQuantity for non-existent ingredient
- Steps: Try decreasing the quantity of a non-existent ingredient: decreaseQuantity("Flour", 5).
- Expected: The message Ingredient not found should be displayed.

2.5 Set and View Low Stock Alerts

Test case: setAlert
- Steps: Set a low stock alert for an ingredient: setAlert("Sugar", 2).
- Expected: A low stock alert for Sugar should be set at the threshold of 2.
Test case: viewLowStock
- Steps: View low stock ingredients when the alert is set: viewLowStock().
- Expected: If Sugar has a quantity lower than 2, the message Low stock: Sugar (quantity) should be displayed.

2.6 Delete Ingredient

Test case: deleteIngredient
- Steps: Delete an existing ingredient: deleteIngredient("Sugar").
- Expected: The ingredient Sugar should be removed from the inventory, and the message Deleted Sugar from inventory. should be displayed.
Test case: deleteIngredient for non-existent ingredient
- Steps: Try deleting a non-existent ingredient: deleteIngredient("Flour").
- Expected: The message Ingredient not found. should be displayed.

2.7 Convert Ingredient Unit

Test case: convertIngredient
- Steps: Convert an ingredient’s unit: convertIngredient("Sugar", Unit.KG).
- Expected: The quantity of Sugar should be converted to kilograms, and the message Sugar converted (new quantity) to KG should be displayed.
Test case: convertIngredient for non-existent ingredient
- Steps: Try converting a non-existent ingredient: convertIngredient("Flour", Unit.KG).
- Expected: The method should throw an IllegalArgumentException with the message Ingredient not found.

2.8 View Ingredients by Category

Test case: viewIngredientsByCategory
- Steps: View ingredients by category: viewIngredientsByCategory(Category.CONDIMENTS).
- Expected: The ingredients in the CONDIMENTS category should be displayed, if available.
Test case: viewIngredientsByCategory for empty category
- Steps: View ingredients by a category with no ingredients: viewIngredientsByCategory(Category.SPICES).
- Expected: The message No ingredients found in category: SPICES should be displayed.

2.9 Add A Recipe

Test case: addRecipe
- Steps:
  - Run the command addRecipe
  - Add good_recipe for the recipe name
  - Add any string (no white space) for the ingredient name
  - Add any positive number for the ingredient quantity
  - Add any unit availabe in Unit (for example, kg)
  - Add any category avaialable in Category (for example, DAIRY)
  - Input exit to continue
  - Add any string
  - Input exit to finish
- Expected: The message Recipe added successfully should be displayed.
Test case: addRecipe with recipe name containing white space
- Steps:
  - Run the command addRecipe
  - Add recipe with space for the recipe name
- Expected: The message Warning: Recipe name should not contain space. Use '_' instead. should be displayed. Users should be prompted to input the recipe name again.
Test case: addRecipe with ingredient name containing white space
- Steps:
  - Run the command addRecipe
  - Add any string (no white space) for the recipe name
  - Add ingredient with space for the ingredient name
- Expected: The message Ingredient Name cannot contain spaces. Try again should be displayed. Users should be promted to input the ingredient name again.
Test case: addRecipe with quantity not being a number
- Steps:
  - Run the command addRecipe
  - Add any string (no white space) for the recipe name
  - Add any string (no white space) for the ingredient name
  - Add any string (not a number) for quantity
- Expected: The message Invalid ingredient quantity! Try again. should be displayed. Users should be prompted to input the quantity again.
Test case: addRecipe with non-positive quantity
- Steps:
  - Run the command addRecipe
  - Add any string (no white space) for the recipe name
  - Add any string (no white space) for the ingredient name
  - Add any number less than or equal 0 for the ingredient name
- Expected: The message Quantity must be greater than 0.Try again. should be displayed. Users should be prompted to input the quantity again.
Test case: addRecipe with invalid unit
- Steps:
  - Run the command addRecipe
  - Add any string (no white space) for the recipe name
  - Add any string (no white space) for the ingredient name
  - Add any positive number for the ingredient quantity
  - Add random string (e.g. i love you) for Unit
- Expected: The message Invalid ingredient unit! Try again. should be displayed. Users should be prompted to input the unit again.
Test case: addRecipe with invalid category
- Steps:
  - Run the command addRecipe
  - Add any string (no white space) for the recipe name
  - Add any string (no white space) for the ingredient name
  - Add any positive number for the ingredient quantity
  - Add any unit availabe in Unit (for example, kg)
  - Add any category avaialable in Category (for example, DAIRY)
  - Input exit to continue
  - Add any string
  - Input exit to finish
- Expected: The message Invalid category! Try again. should be displayed. Users should be prompted to input the category again.
Test case: addRecipe with duplicate recipe
- Steps: Run test case 2.9.1 (Test case: addRecipe) with the exact steps twice
- Expected: The message Warning: Recipe GOOD_RECIPE already exists should be displayed. Users should be prompted to input the recipe name again

2.10 View A Recipe

Test case: viewRecipe
- Steps:
  - Follow the steps as specified in test case 2.9.1
  - Run the command viewRecipe good_recipe
- Expected: A message having 3 sections, the first section being the recipe name (good_recipe), the second section being the recipe’s ingredient and the third section being the recipe’s instructions should be displayed.
Test case: viewRecipe with non-existing recipe
- Steps: Run the command viewRecipe not_existing
- Expected: The message There is no recipe with name NOT_EXISTING should be displayed.

2.11 View The Full List Of Recipes

Test case: viewRecipeList
- Steps:
  - Follow the steps as specified in test case 2.9.1
  - Repeat test case 2.9.1 three times with different name each time
  - Run the command viewRecipeList
- Expected: The list of recipe names should be displayed.

2.11 Add New Shopping Item

Test case: addShoppingItem
- Steps: Add a new item to the shopping list: addShoppingItem sugar 500 g
- Expected: The message Add 'SUGAR' to the shopping list. should be displayed.
Test case: addShoppingItem with invalid quantity
- Steps: Add an item with a negative quantity: addShoppingItem sugar -5 g
- Expected: The message Quantity must be greater than 0 should be displayed.
Test case: addShoppingItem with duplicating item name
- Steps: Add an item name ‘sugar’ twice: addShoppingItem sugar 150 g
- Expected: The message Item 'SUGAR' already exists. Please use editShoppingItem to update the item. should be displayed.
Test case: addShoppingItem with invalid unit
- Steps: Add an item with invalid unit: addShoppingItem sugar 500 invalid_unit
- Expected: The message Invalid unit: invalid_unit should be displayed.

2.12 Remove Shopping Item

Test case: removeShoppingItem
- Steps: Remove an existing item: removeShoppingItem sugar
- Expected: The message Removed 'SUGAR' from the shopping list. should be displayed.
Test case: removeShoppingItem with non-existent item
- Steps: Try removing a non-existent item: removeShoppingItem nonexistent_item
- Expected: The message Item 'NONEXISTENT_ITEM' not found in the shopping list. should be displayed.

2.13 Edit Shopping Item

Test case: editShoppingItem
- Steps: Edit an existing item: editShoppingItem 1 sugar 1000 kg
- Expected: The message Item at index 1 updated successfully. should be displayed.
Test case: editShoppingItem with invalid index
- Steps: Try editing an un-existent item with invalid index: editShoppingItem invalid_index sugar 500 g
- Expected: The message Invalid index provided. No item updated. should be displayed.
Test case: editShoppingItem with invalid quantity
- Steps: Edit an item with negative quantity: editShoppingItem 1 sugar -5 g
- Expected: The message Quantity must be greater than 0 should be displayed.
Test case: editShoppingItem with existing item name
- Steps: Add a new item: ‘addShoppingItem item 50 g’. Then edit its item name to another existing item name: editShoppingItem 2 sugar 150 g
- Expected: The message Ingredient name already exists. Please try again with another name. should be displayed.

2.14 Mark Shopping Item as Purchased

Test case: markShoppingItemAsPurchased
- Steps: Mark an existing item as purchased: markShoppingItemAsPurchased sugar
- Expected: The message Marked 'SUGAR' as purchased. should be displayed.
Test case: markShoppingItemAsPurchased with non-existent item
- Steps: Try marking a non-existent item: markShoppingItemAsPurchased nonexistent_item
- Expected: The message Item 'NONEXISTENT_ITEM' not found in the shopping list. should be displayed.

2.15 Generate Shopping List

Test case: generateShoppingList
- Steps:
  - Add ingredient below alert: addNewIngredient apple 500 g fruit
  - Set low stock alert: setAlert apple 1000
  - Run command: generateShoppingList
- Expected: The message Shopping list has been auto-generated as below: should be displayed, and the shopping list should contain sugar with quantity 500g.
Test case: generateShoppingList with no low stock items
- Steps: Run command when no ingredients are below their alert thresholds: generateShoppingList
- Expected: The message No items need to be added to shopping list should be displayed.

2.16 View Shopping List

Test case: viewShoppingList with items
- Steps:
  - Add items using addShoppingItem
  - Run command: viewShoppingList
- Expected: A numbered list of shopping items should be displayed, showing each item’s name, quantity, unit, and purchase status if purchased.
Test case: viewShoppingList with purchased items
- Steps:
  - Add items using addShoppingItem
  - Mark some items as purchased using markShoppingItemAsPurchased
  - Run command: viewShoppingList
- Expected: The shopping list should display items with their purchase status, showing “(Purchased)” next to purchased items.
Test case: viewShoppingList with empty list
- Steps: Run command with no items in list: viewShoppingList
- Expected: The message Shopping list is empty. should be displayed.

2.17 Add Plan

Test case: addPlan with only a whitespace after
- Steps:
  - Run command: addPlan
- Expected: An error message indicating that insufficient inputs are given
Test case: addPlan with standard string
- Steps:
  - Run command: addPlan plan1
- Expected: a plan with the name plan1 is created and can be viewed
Test case: addPlan with special characters or characters from different language
- Steps: addPlan 好\\お/πㄴ
- Expected: a plan with the name 好\\お/πㄴ is created and can be viewed

2.18 AddRecipeToPlan

Requirements: At least one valid addPlan was successfully called At least one valid addRecipe was successfully called A valid string (breakfast,lunch or dinner) input A addRecipeToPlan for the same meal type was not called before

Test case: addrecipetoplan with only a whitespace after
- Steps:
  - Run command: addrecipetoplan
- Expected: An error message indicating that insufficient inputs are given
Test case: addrecipetoplan with valid inputs
- Steps:
  - Run command: addRecipeToPlan 1 1 breakfast
- Expected: the plan in index 0 of planList has a recipe added to the breakfast planRecipe
Test case: addRecipeToPlan with special characters or characters from different language
- Steps: addRecipeToPlan 好\\お/πㄴ
- Expected: IllegalArgumentException should be thrown and a prompt to avoid unconventional characters will be given

2.19 AddPlanToDay

Test case: AddPlanToDay with only a whitespace after
- Steps:
  - Run command: AddPlanToDay
- Expected: An error message indicating that insufficient inputs are given
Test case: AddPlanToDay with valid inputs
- Steps:
  - Run command: AddPlanToDay 1 MONDAY
- Expected: the plan in index 0 of weeklyPlans copies the values of index 0 of planList
Test case: AddPlanToDay with special characters or characters from different language
- Steps: AddPlanToDay 2 好\\お/πㄴ
- Expected: IllegalArgumentException should be thrown and a prompt to avoid unconventional characters will be given

2.20 RemoveRecipeFromPlan

Requirements: At least one valid addPlan was successfully called At least one valid addRecipe was successfully called A valid string (breakfast,lunch or dinner) input

Test case: removeRecipeFromPlan with only a whitespace after
- Steps:
  - Run command: removeRecipeFromPlan
- Expected: An error message indicating that insufficient inputs are given
Test case: removeRecipeFromPlan with valid inputs
- Steps:
  - Run command: removeRecipeFromPlan 1 BREAKFAST
- Expected: the plan in index 0 of weeklyPlans has the value index 0 of planRecipes cleared
Test case: removeRecipeFromPlan with special characters or characters from different language
- Steps: removeRecipeFromPlan 好\\お/πㄴ
- Expected: IllegalArgumentException should be thrown and a prompt to avoid unconventional characters will be given

2.21 RemovePlan

Requirements: At least one valid addPlan was successfully called

Test case: RemovePlan with only a whitespace after
- Steps:
  - Run command: RemovePlan
- Expected: An error message indicating that insufficient inputs are given
Test case: RemovePlan with valid inputs
- Steps:
  - Run command: RemovePlan 1
- Expected: the plan in index 0 of planList is cleared, and the corresponding plan in weeklyPlans is also cleared
Test case: RemovePlan with special characters or characters from different language
- Steps: RemovePlan 好\\お/πㄴ
- Expected: IllegalArgumentException should be thrown and a prompt to avoid unconventional characters will be given

2.22 RemovePlanFromDay

Requirements: At least one valid addPlanToDay was successfully called

Test case: RemovePlanFromDay with only a whitespace after
- Steps:
  - Run command: RemovePlanFromDay
- Expected: An error message indicating that insufficient inputs are given
Test case: RemovePlanFromDay with valid inputs
- Steps:
  - Run command: RemovePlanFromDay MONDAY
- Expected: the plan in index 0 of weeklyPlans is cleared
Test case: RemovePlan with special characters or characters from different language
- Steps: RemovePlan 好\\お/πㄴ
- Expected: IllegalArgumentException should be thrown and a prompt to avoid unconventional characters will be given

2.23 FindPlan

Test case: FindPlan with no plans made or non-matching search key
- Steps:
  - Run command: FindPlan
- Expected: No plans matching the search key was found
Test case: FindPlan with matching search key
- Steps:
  - Run command: addPlan plan1
  - Run command: addPlan egg
  - Run command: addPlan lard
  - Run command: FindPlan l
- Expected: the plans with names containing l are listed, preceded by their matching indices

2.24 ExecutePlan

Requirements: At least one valid addRecipe was called At least one valid addIngredient was called At least one valid addPlanToDay was called

Test case: execute with insufficient ingredients in IngredientInventory
- Steps:
  - Run command: execute MONDAY
- Expected: series of console messages to inform the user about missing ingredients for the relevant recipes, and prompt for adding missing ingredients to shopping list
Test case: execute with sufficient ingredients
- Steps:
  - Run command: execute TUESDAY
- Expected: Informs user about ongoing process to execute plan, then a series of console messages informing user about what recipes were in the plan

2.25 ViewPlan

Test case: viewPlan with no plans created
- Steps:
  - Run command: viewPlan 1
- Expected: Invalid plan index
Test case: viewPlan with valid index and created plan
- Steps:
  - Run command: viewPlan 1
- Expected: Shows the details of index 0 of planList

2.26 ViewDayPlan

Test case: viewDayPlan with no plans created
- Steps:
  - Run command: viewDayPlan 1
- Expected: “Invalid plan index”
Test case: viewDayPlan with valid input and created plans
- Steps:
  - Run command: viewPlan 0
- Expected: Shows the details of index 0 of weeklyPlans

2.27 ViewPlanList

Test case: ViewPlanList with no plans created
- Steps:
  - Run command: ViewPlanList
- Expected: No plans available
Test case: ViewPlanList with created plans
- Steps:
  - Run command: ViewPlanList
- Expected: Shows the index and plan names of all plans in planList

2.28 ViewWeekPlans

Test case: ViewWeekPlans with no plans created
- Steps:
  - Run command: ViewWeekPlans
- Expected: No plans available
Test case: ViewWeekPlans with created plans
- Steps:
  - Run command: ViewWeekPlans
- Expected: Shows the index and plan names of all plans in weeklyPlans
